Steel Plant Material Flow Analysis Methodology

Comprehensive Plant Operations Analysis Through Material Flow Mapping

Author: Dr Andrzej M Kotas | ORCID: 0009-0009-5497-5384

This methodology documents our systematic approach to analysing integrated steel plant operations through upstream material flow mapping. By working backward from finished product sales to raw material inputs, this bottom-up technique provides comprehensive visibility into plant loading, production bottlenecks, and strategic optimisation opportunities across melt shops, casting facilities, rolling mills, and finishing lines. For the energy efficiency and process improvement techniques that typically emerge from such analysis, see the Best Available Techniques podcast episode.

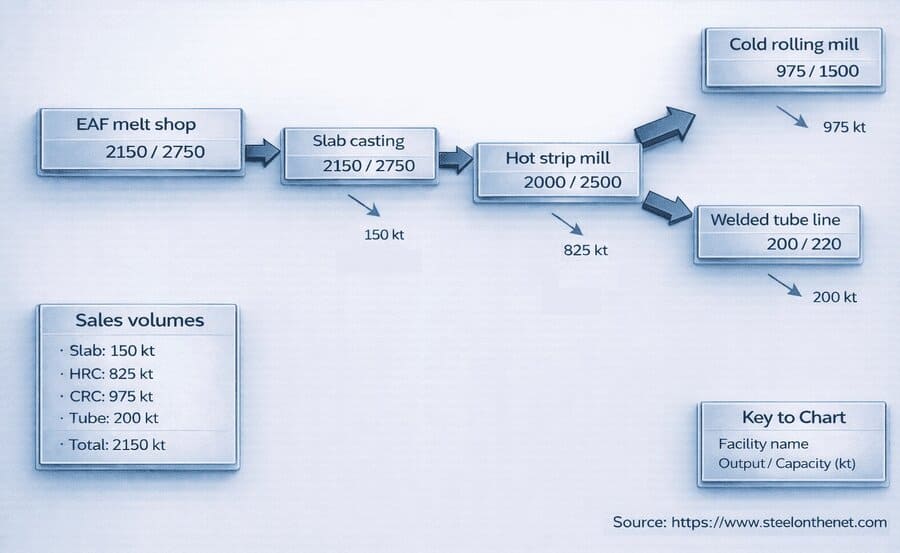

Steel plant material flow diagram showing upstream production analysis from sales to melt shop
Material flow analysis for EAF steel plant showing capacity utilisation from finished products back to melt shop

Purpose and Applications

Material flow analysis serves multiple strategic purposes in steel plant assessment:

  • Operational Description: Provides clear, comprehensive description of what a steel plant produces and how production flows through various processing stages
  • Bottleneck Identification: Identifies plant loading issues and production bottlenecks that constrain overall throughput
  • Procurement Clarity: Clarifies raw material and intermediate product purchase volumes required to support production
  • Strategic Diagnosis: Facilitates rapid diagnosis of strategic issues including underutilised capacity, product mix optimisation, and investment priorities.

Methodology Overview

The material flow analysis methodology employs a systematic bottom-up approach, starting from finished product sales and working upstream through each production stage to calculate input requirements. This reverse-flow technique ensures all material movements are captured and capacity utilisation is accurately assessed at each processing unit.

Key Terms

Material Flow
The movement of steel through successive production stages — from raw materials through steelmaking, casting, rolling, and finishing to saleable product
Bottleneck
A production unit operating at or near full capacity (>95%) that constrains overall plant throughput regardless of spare capacity elsewhere
Capacity Utilisation
Actual production ÷ installed capacity × 100 — calculated separately for each processing unit: melt shop, caster, rolling mill, and finishing lines
Mass Balance
Verification that total inputs at each production stage equal outputs plus documented yield losses — any imbalance flags a data or assumption error
HSM
Hot Strip Mill — primary flat product rolling unit producing hot-rolled coil (HRC) from slab; feedstock for cold rolling and tube mills
EAF
Electric Arc Furnace — steelmaking unit melting scrap and/or DRI using electricity; common in flat and long product mini-mills
DRI
Direct Reduced Iron — a metallic charge material used in EAF steelmaking as a higher-quality alternative or supplement to scrap
Effective Capacity
Realistic achievable output after accounting for maintenance, product changeovers, and campaign scheduling — always lower than nameplate capacity

Purpose and Applications

Step 1: Identify Downstream Sales Volumes

Begin analysis with the most downstream sales, representing finished products sold to external customers:

  • Cold-rolled coil (CRC) sales
  • Galvanised and coated sheet sales
  • Welded tube and pipe sales
  • Other finished product sales

For detailed explanation of cold-rolled coil, hot-rolled coil, and other flat products, see our flat-rolled steel essentials guide.

Example: In the reference diagram, downstream sales include CRC (975 kt), welded tube (200 kt), with additional sales occurring at intermediate stages (HRC: 825 kt, Slab: 150 kt).

Step 2: Calculate Intermediate Production Requirements

For each processing unit, calculate total output requirements by summing:

  • External sales from that unit
  • Internal transfer volumes to downstream processing

Example: Hot strip mill production = HRC external sales (825 kt) + CRC feedstock requirement (975 kt) + welded tube feedstock requirement (200 kt) = 2,000 kt total HSM output.

This calculation defines the production volume each unit must achieve to support both external sales and internal downstream requirements.

Step 3: Work Upstream Through Production Chain

Repeat the calculation process sequentially for each upstream production stage:

  • Slab casting: Calculate slab production = hot strip mill feedstock requirement + external slab sales
  • Melt shop: Calculate crude steel production = slab caster feedstock requirement + any other steel outputs
  • Raw materials: Calculate scrap, pig iron, DRI, and ferroalloy requirements based on melt shop production and metallic charge ratios. Note that EAF steelmaking generates significant volumes of slag, baghouse dust, and other by-products alongside crude steel output; the recovery value of these streams is examined in the EAF By-Products podcast episode

Example: Slab production = HSM requirement (2,000 kt) + slab sales (150 kt) = 2,150 kt. This equals EAF melt shop output requirement (ignoring yield losses for this simplified example).

Step 4: Apply Process Yield Factors

In actual plant analysis (not shown in simplified diagram), incorporate yield losses at each production stage:

  • Melt shop to casting: Typical yield 95-97% (skull, ladle residual)
  • Casting to rolling: Typical yield 97-99% (crop ends, surface conditioning)
  • Hot rolling: Typical yield 95-97% (scale, crop, cobbles)
  • Cold rolling: Typical yield 96-98% (edge trim, gauge variance)
  • Coating/finishing: Typical yield 97-99% (edge trim, surface defects) — see air knife and coating mass control

Note: With 2,150 kt of finished product sales and typical yield losses, actual melt shop output would likely be 2,400-2,500 kt or more, rather than the 2,150 kt shown in the simplified diagram.

Step 5: Calculate Capacity Utilisation

For each production unit, calculate capacity utilisation:

Capacity Utilisation (%) = (Actual Production ÷ Installed Capacity) × 100

Document capacity utilisation for:

  • Melt shop (EAF or BOF)
  • Slab casting
  • Hot strip mill or other primary rolling
  • Cold rolling mill
  • Coating lines
  • Welded tube lines
  • Other finishing facilities

Example: Melt shop capacity utilisation = 2,150 kt production ÷ 2,750 kt capacity = 78%

Step 6: Identify Production Bottlenecks

Analyse capacity utilisation patterns to identify constraints:

  • Tight bottlenecks: Units operating at >95% capacity that limit overall throughput
  • Moderate constraints: Units at 85-95% capacity with limited expansion headroom
  • Underutilised assets: Units at <80% capacity representing potential for increased production

Bottleneck analysis reveals whether plant is constrained by upstream steelmaking capacity, intermediate processing capacity, or downstream finishing capacity.

Step 7: Assess Raw Material Requirements

Based on melt shop production requirements, calculate:

  • Metallic charge: Scrap, pig iron, DRI volumes based on charge mix and availability
  • Ferroalloys: FeMn, FeSi, and other additions based on steel grade mix
  • Flux materials: Lime, dolomite, fluorspar requirements
  • Energy: Electricity (EAF) or oxygen (BOF) consumption

This clarifies procurement volumes and identifies whether raw material availability constrains production. For more detail on melt shop inputs, see our EAF cost model or BOF cost model page.

Step 8: Develop Strategic Recommendations

Synthesize findings into actionable strategic recommendations:

  • Capacity expansion priorities based on identified bottlenecks
  • Product mix optimisation to improve underutilised asset loading
  • Intermediate product sales opportunities (slab, HRC) if upstream capacity exceeds downstream capacity
  • Raw material strategy adjustments (e.g., pig iron or DRI purchases if scrap availability limits melt shop throughput) — the strategic implications of scrap supply constraints, including decarbonisation pressures, are examined in the Steel Scrap Supply podcast episode
  • Investment business cases for new finishing capacity to absorb upstream production capability.

Example Analysis: Integrated Flat Products Mill

Key Observations

Analysis of the notional reference plant example shown above reveals several important operational characteristics:

  • Upstream underutilisation: Melt shop and slab caster loading poor with capacity utilisation of just 78% (2,150 kt production vs 2,750 kt capacity)
  • Hot rolling underutilisation: Hot strip mill operating at 80% capacity (2,000 kt production vs 2,500 kt capacity)
  • Cold rolling underutilisation: Cold rolling mill at just 65% capacity (975 kt production vs 1,500 kt capacity)
  • Welded tube line well-loaded: Tube line operating at 91% capacity (200 kt production vs 220 kt capacity)
  • Total sales: 2,150 kt across all product categories (150 kt slab + 825 kt HRC + 975 kt CRC + 200 kt tube).

Strategic Diagnosis

Based on the observed plant loading, several strategic questions and opportunities emerge:

Production Volume Question:

  • Downstream finishing capacity totals 2,500 kt (HSM), yet actual production is only 2,150 kt. What constrains throughput?
  • Is scrap availability limiting melt shop production? Would pig iron or DRI purchases enable higher throughput if sscrap availability is a limitation?
  • Are market demand limitations reducing sales volumes despite available capacity? If so, could export sales offer an incremental volume opportunity?

Intermediate Product Sales Opportunity:

  • Slab caster has surplus capacity of ~600 kt (2,750 kt capacity - 2,150 kt current production)
  • If melt shop produced an additional 500-600 kt of steel, could additional slab sales improve financial performance?
  • Is there viable market demand for commodity slab exports or regional sales?

Hot Strip Mill Optimisation:

  • Sub-optimal HSM loading (80%) suggests additional 500 kt HRC production possible with current assets
  • Would additional HRC sales be more profitable than slab sales given higher value-add?
  • Could product mix shift toward more HRC sales and fewer downstream CRC sales improve plant economics?

Cold Rolling Mill Optimisation:

  • CRM severely underutilised at 65% capacity (975 kt vs 1,500 kt capacity)
  • Surplus capacity of ~500 kt available for additional CRC production
  • Could increased CRC sales absorb underutilised CRM capacity?

Investment Opportunity:

  • Given poor tandem cold mill loading, investment in new coating line (400-500 kt/year capacity) could convert underutilised CRC capacity into higher-value galvanised/coated products
  • This would better utilise existing cold rolling assets while moving up the value chain
  • Coating line investment may be more attractive than expanding semi-finished sales (i.e slab sales). This option could involve acquisition of a neighbouring facility or investment in a new production line.

Important Considerations

Simplified Example: The reference diagram represents a notional steel plant prepared for illustrative purposes. Plant configuration and capacity loadings are fictional and not meant to represent any particular facility.

Yield Losses: For simplicity, yield losses are ignored in the diagram example. In actual plant analysis, these losses are significant. With 2,150 kt of sales, melt shop output would likely be 2,400-2,500 kt or more after accounting for yield losses through casting, rolling, and finishing stages.

Product Mix Complexity: Real plants typically have more complex product mixes including multiple steel grades, gauge ranges, surface finishes, and customer specifications. Material flow analysis must account for these product mix variations and their impact on yield, processing routes, and capacity utilisation.

Campaign Scheduling: Actual plant operations involve campaign scheduling, equipment maintenance, and product changeovers that affect effective capacity. Theoretical capacity should be adjusted for realistic operating patterns.

Data Requirements

Effective material flow analysis requires comprehensive data collection:

  • Sales data: Volumes by product category, including both external sales and internal transfers
  • Capacity data: Installed capacity for each production unit with clarity on theoretical vs effective capacity
  • Yield data: Process yields for each production stage based on actual operating experience
  • Product specifications: Understanding of processing routes for different product types
  • Metallurgical constraints: Quality limitations, gauge ranges, and grade capabilities by unit
  • Raw material availability: Scrap supply constraints, pig iron/DRI sourcing options, and cost economics.

Applications in Consulting Practice

Material flow analysis serves as foundation for multiple consulting applications:

  • Feasibility studies: Sizing new plant capacity based on target sales volumes and product mix
  • Due diligence: Understanding actual plant operations and identifying hidden bottlenecks for investment assessment
  • Strategic reviews: Identifying optimisation opportunities for existing plants including capacity additions, product mix shifts, or intermediate product sales
  • Restructuring: Determining which assets to retain, upgrade, or divest based on loading patterns and strategic fit
  • Capacity expansion: Pinpointing highest-priority capacity investments to relieve bottlenecks and increase saleable output
  • Acquisition analysis: Assessing operational efficiency and improvement potential for target companies.

This methodology has been applied across 25+ years of consulting engagements with steel producers, government agencies, development banks, and private equity investors for due diligence, feasibility assessment, and strategic planning projects.

Quality Standards & Verification

Our material flow analysis methodology incorporates multiple quality assurance measures:

  • Mass balance verification: Ensuring total inputs equal outputs plus documented losses at each production stage
  • Capacity cross-checks: Validating capacity utilisation calculations against industry benchmarks and technical literature
  • Operating experience: Incorporating learnings from 25+ years of steel plant visits and operational assessments
  • Peer review: Expert review of analysis findings and strategic recommendations for technical accuracy
  • Client validation: Verification of findings with plant operators and technical staff when possible.

This rigorous approach ensures analysis provides reliable foundation for strategic decision-making on capacity investments, operational improvements, and business development initiatives.
